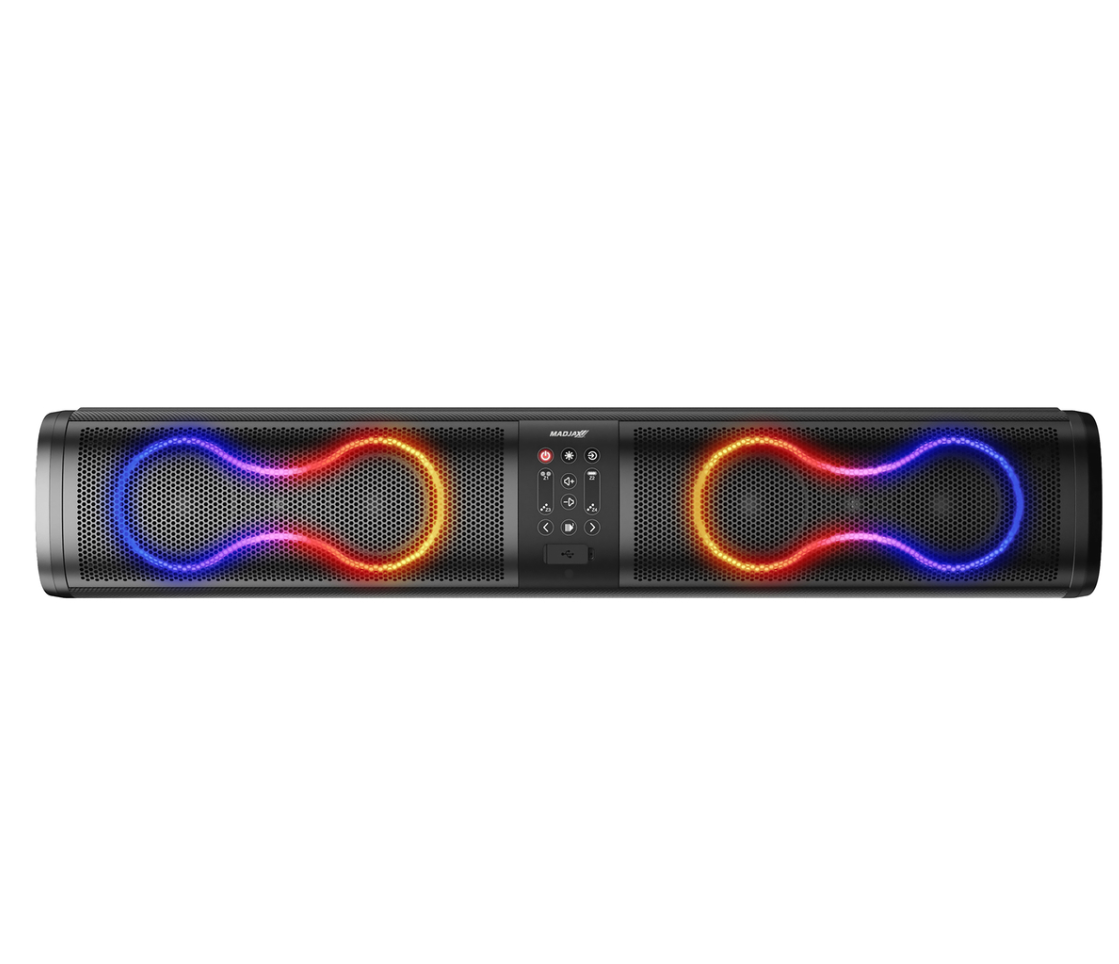

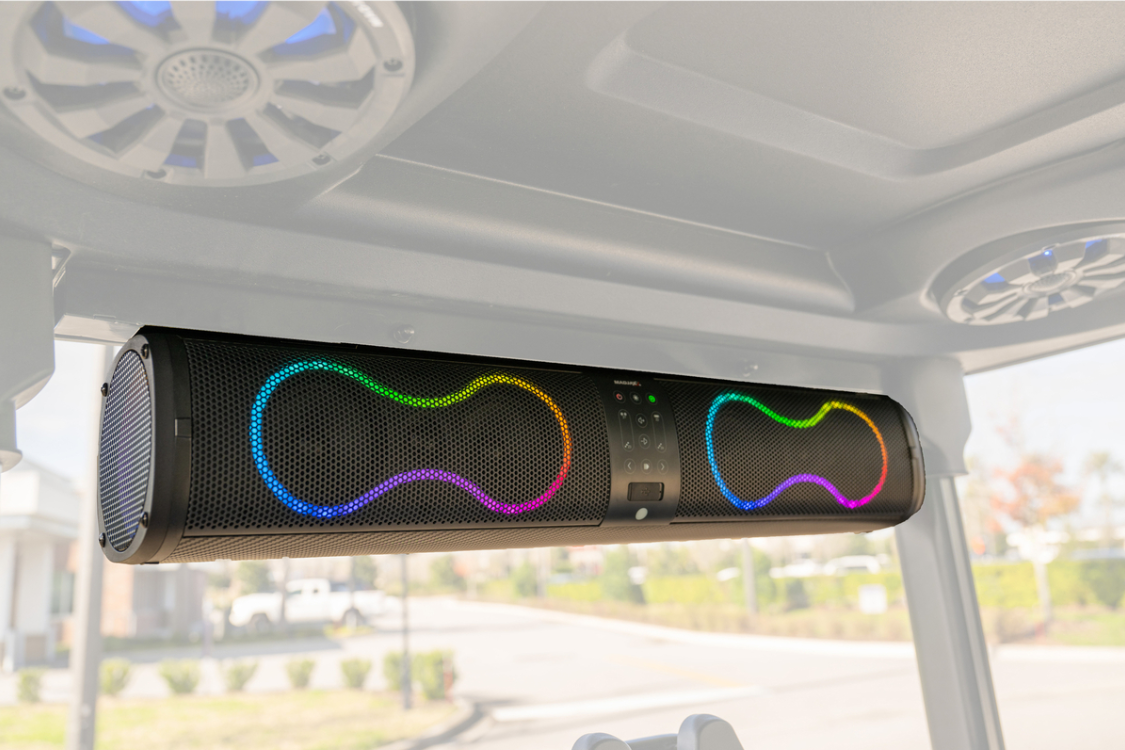

The MadJax® Decibel Audio™ soundbar adds life to the cart with both great sound and an RGB lightshow to match the vibes. This is a perfect add-on sale to add value to the carts for your end consumer.

Features:

• Massive 500W Output: Packed with rich bass, clear mids, and crisp highs. Crank the tunes with powerful, distortion-free audio
• Party Mode: Link up to 100 soundbars together
• Dynamic RGB3 Lighting: Customizable LEDs allow the consumer to choose colors and modes to match the music
• MadJax® EnduraShell™: Corrosion-free aluminum casing for even the toughest environments

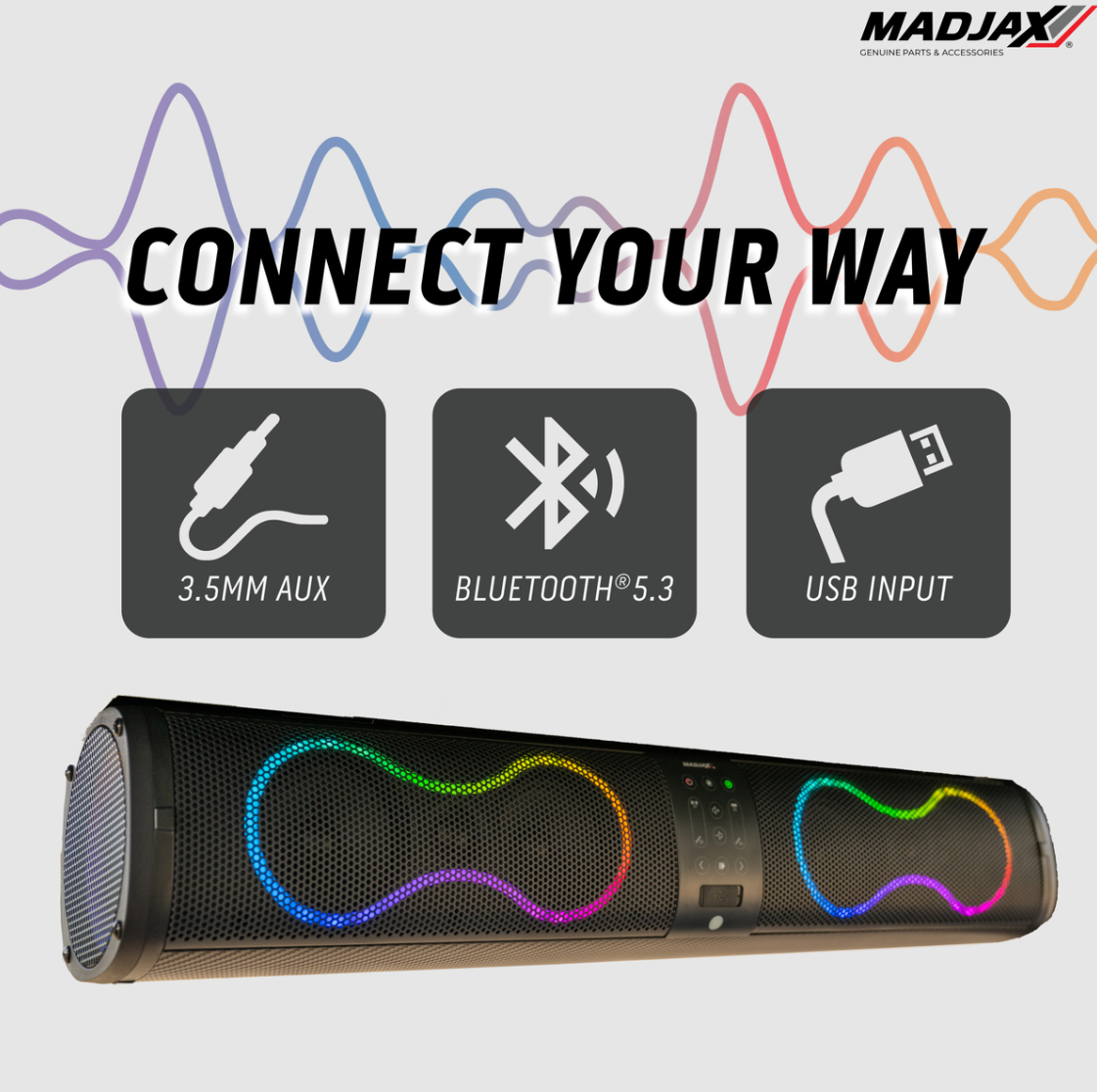

• Bluetooth™/AUX Input: Can connect to play music via Bluetooth™ or a 3.5mm AUX cable
• IP66 Rated: Dustproof and water resistant for the outdoor environment
• Speaker Configuration: (4) Full-Range speakers, (2) Silk domed tweeters, (2) ResonX™ radiators for deep, punchy low-end
• Width is 26” wide with an on-unit control panel in the middle

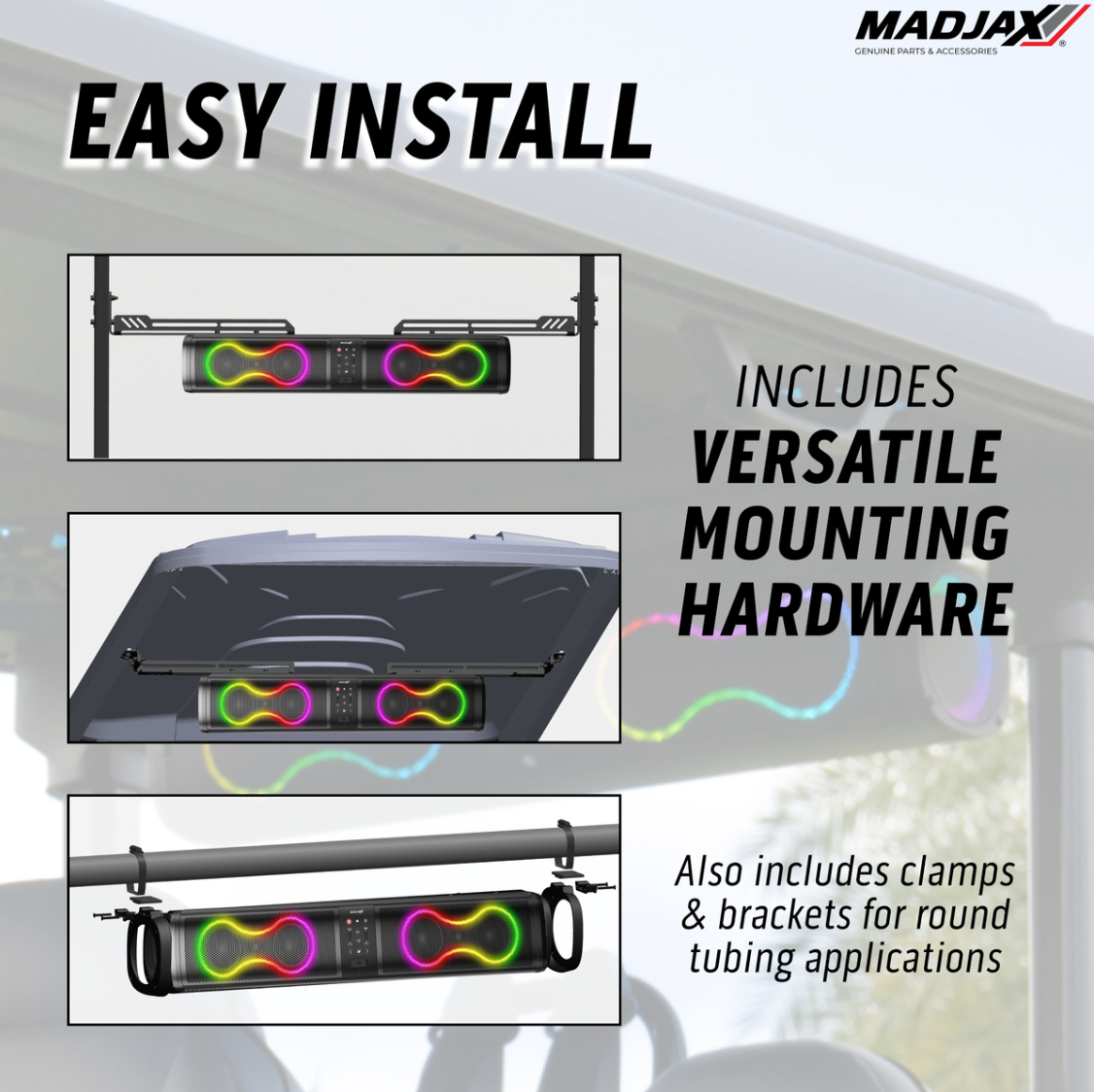

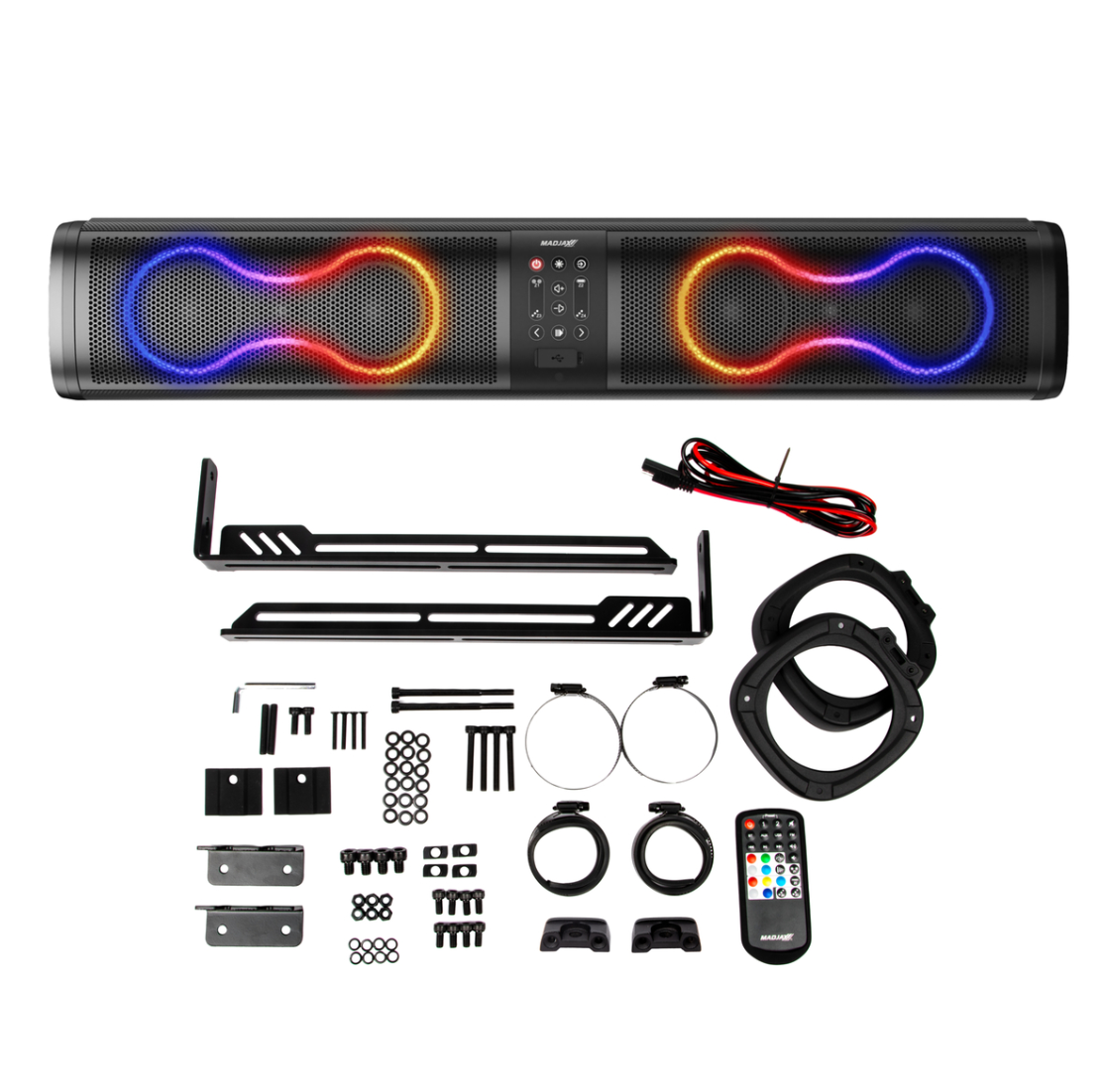

• Contains mounting brackets that allow for versatile mounting locations
• Hard wire power required
• Features a USB plug to play music, update the device, and charge other devices from it
• Comes with a 1-year warranty

Specifications:

• Enclosure Type: Sealed/Full-Range 6-Speaker
• Finish Material: SPCC Steel Woofers, PC+ABS Tweeters
• Grille: Metal mesh protective grille
• Connector Type: Integrated harness
• Quick-Disconnect Plug: Yes
• Bi-amp Inputs: No
• Speaker Configuration: 4 Woofers + 2 Tweeters
• Tweeter Type: Silk Dome
• Woofer Material: Dynamic cone with steel basket
• Width: 27.6"
• Height: 5.6"
• Depth: 5.2"
• Operating Voltage: 11 - 13 V DC
• IP Rating IP66 (Water and Dust Resistant)
• Operating Temperature: -10 °C - 55 °C
• Parts Warranty: 1 Year
• Labor Warranty: 1 Year
• Frequency Response: 45 Hz - 20 kHz (-6 dB)
• Maximum Power (Peak): 500 watts
• Signal-to-Noise Ratio: 85 dB
• Impedance: Woofers 2 Ω / Tweeters 6 Ω
• Amplifier Class: Class D Digital
• Built-In Filters: High-Pass and Low-Pass Filters
• Supported Inputs: Bluetooth™, 3.5 mm AUX, USB Drive
• Multi-Link (Party Mode): Up to 100 soundbars
• Certifications: CE, FCC, RoHS, REACH, CA65, PFAS, TSCA, TPCH
• Power Requirement: 12 V DC (11 - 13 V range)
